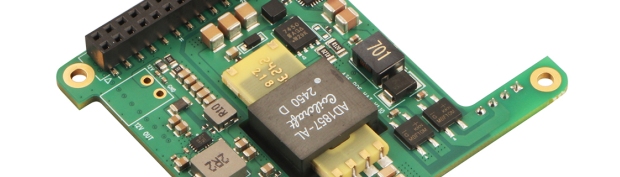

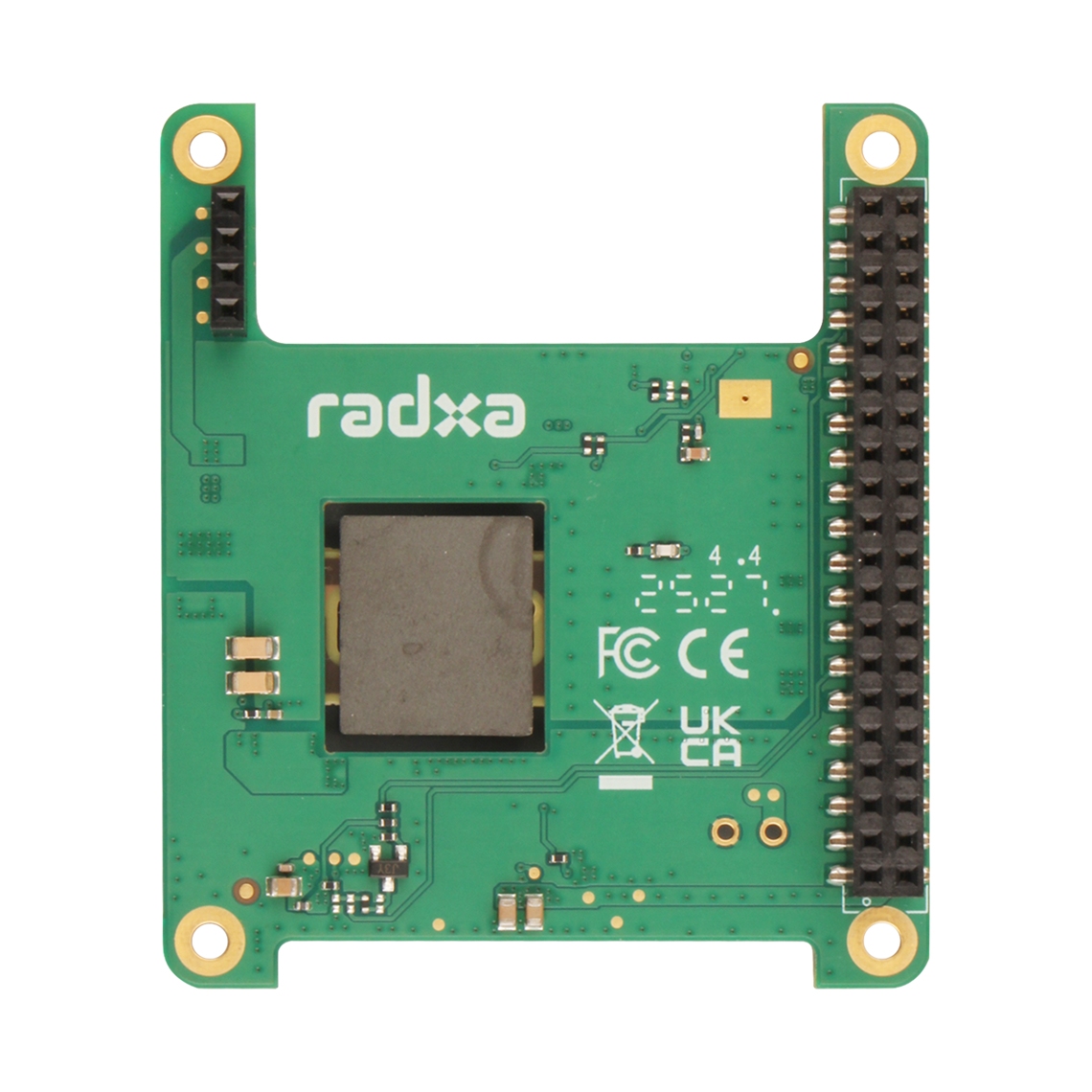

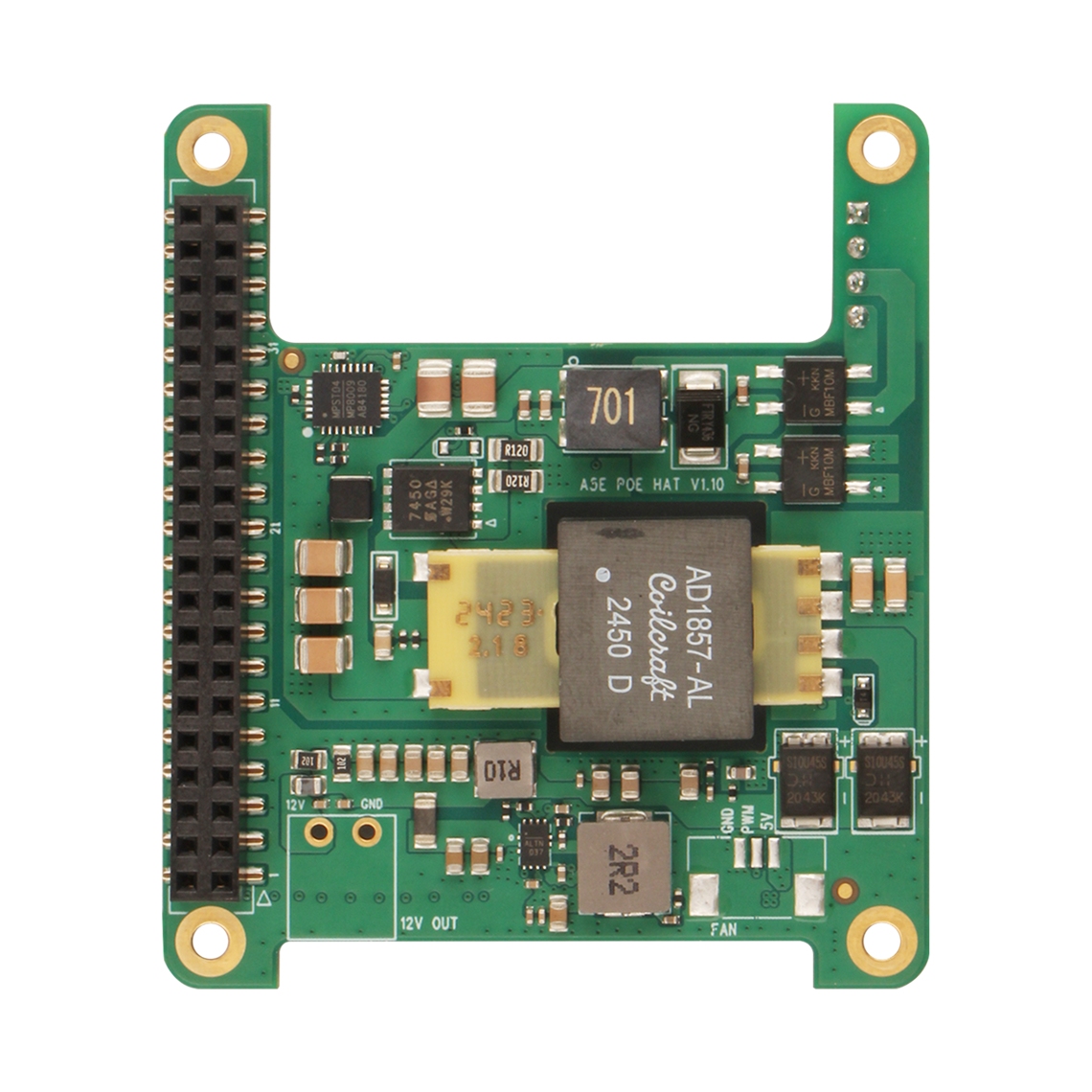

Radxa 20W PoE+ HAT is a high efficiency power supply solution designed for Single Board Computers (SBCs). It complies with IEEE 802.3af/at PoE standards, supporting power and network transmission through a single cable, significantly simplifying device wiring.


The Radxa 20W PoE+ HAT is designed to be compatible with various Single Board Computers (SBCs) and is currently fully compatible with the Cubie A5E.

Features

• Energy Efficient - Maximum power of 20W, automatically adapts to different load requirements, reducing energy consumption.


• Compact Design - Features a small form factor that, when paired with the Cubie A5E and Radxa Metal Case 7264, can be deployed in tight spaces.


• Standard Power Supply - Supports IEEE 802.3af/at standards, with a wide input voltage range of 37-57V and maximum output of 5V/4A.


• Perfect Compatibility with Cubie A5E - Precision openings and structural design ensure perfect interface compatibility.

Package List

• 1x Radxa 20W PoE+ HAT
• 4x M2*7 mm Standoffs
• 4x M2*8 mm Standoffs
